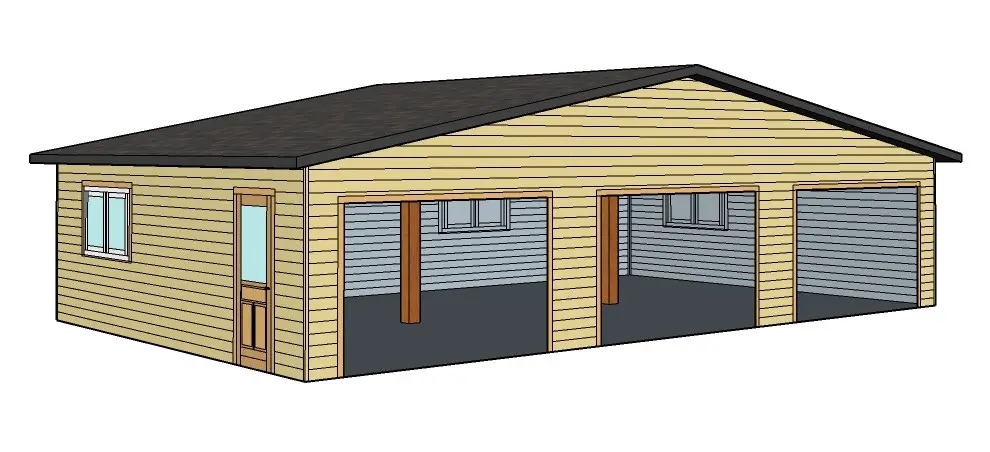

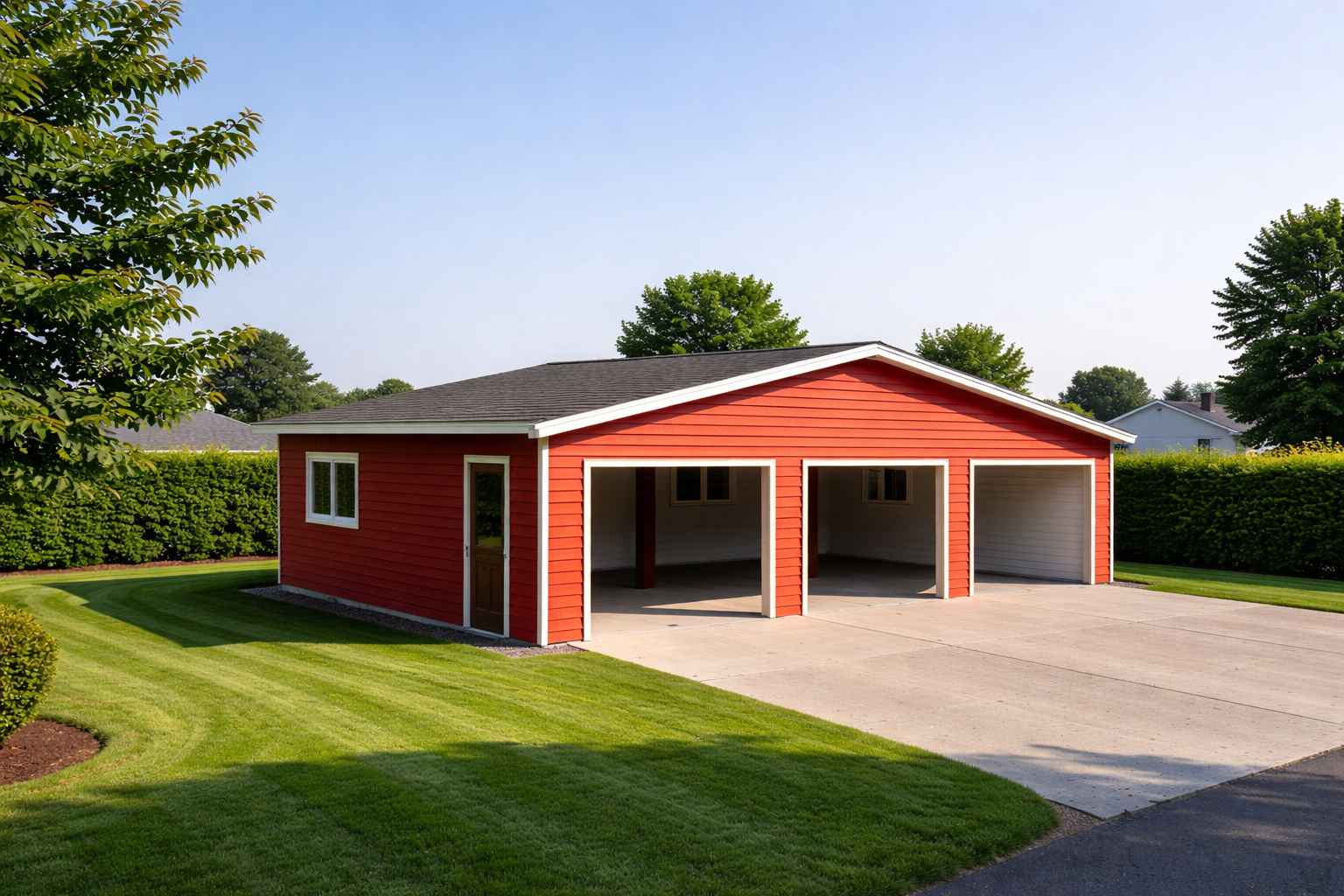

Garage 4024 is a three car garage with solid wood walls using 1-5/8″ x 4-3/8″ (40mm x 113mm) components. Once assembled, studs & siding are applied to the exterior. We offer 2 types of tongue & groove Pine siding plus an extruded PVC maintenance free siding. The main feature of our garages is the all wood interior with vaulted/cathedral ceilings, ready to hang your tools.
Kit includes:
- ready to assemble on a concrete slab
- treated starter plate 1-5/8″ x 5-1/8″ (40mm x 129mm)
- 1-5/8” x 4-3/8″ (40mm x 113mm) tongue & groove logs
- pre-cut, numbered exterior walls
- pre-cut, numbered interior walls
- pre-cut, numbered gable components
- sidewall height 95″ (2413mm)
- 2-3/4” x 9-1/4” (70mm x 235mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
- vaulted, cathedral ceilings
- roof pitch 3/12 (14 degrees)
- roof overhang 12” (300mm)
- center gable
- metal joist/purlin hangers for center gable
- 2 adjustable 8″ x 8″ (200mm x 200mm) posts to support interior gable
- pre-cut, numbered ¾″ (18mm) tongue & groove roof boards
- pre-cut, numbered fascia boards
- 4 – double wide wood windows 60″x39″ (1530mm x 990mm)
- 1 – entry door 1/2 glass tempered 32″ x 80″ (813mm x 2033mm)
- 1143 sq’ of exterior wall surface
- 126 lineal’ per row
- 900 – 6″ log screws to connect each row, gable components, purlins
- GARAGE OVERHEAD DOORS NOT INCLUDED
- STAMPED STRUCTURAL ENGINEERING included when a siding kit is applied. The vertical studs are required to meet structural requirements for building codes. Stud and siding can be purchased locally
EXTERIOR 2×4 STUD & SIDING KITS
Exterior 2×4 stud/siding kits include your choice of 3 siding types to cover the exterior of the garage. EZ Log Semi D-Log tongue & groove pine siding, EZ Log Full D-Log tongue & groove pine siding or a heavy duty maintenance free extruded PVC polymer siding, complete with all the trims. Each kit includes 2×4 studs for 22″ spacing with screws to mount the studs on the exterior
1) ADD 18% – Semi D-Log siding (Max) 3/4″ x 5-1/8″ (18mm x 130mm)
2) ADD 26% – Full D-Log siding (Otoczak) 1-1/8″ x 5-1/8″ (28mm x 130mm)
3) ADD 55% – Vox extruded prefinished PVC polymer siding 5/16″ x 13″ (7mm x 330mm)
PVC siding can be installed horizontally or vertically
