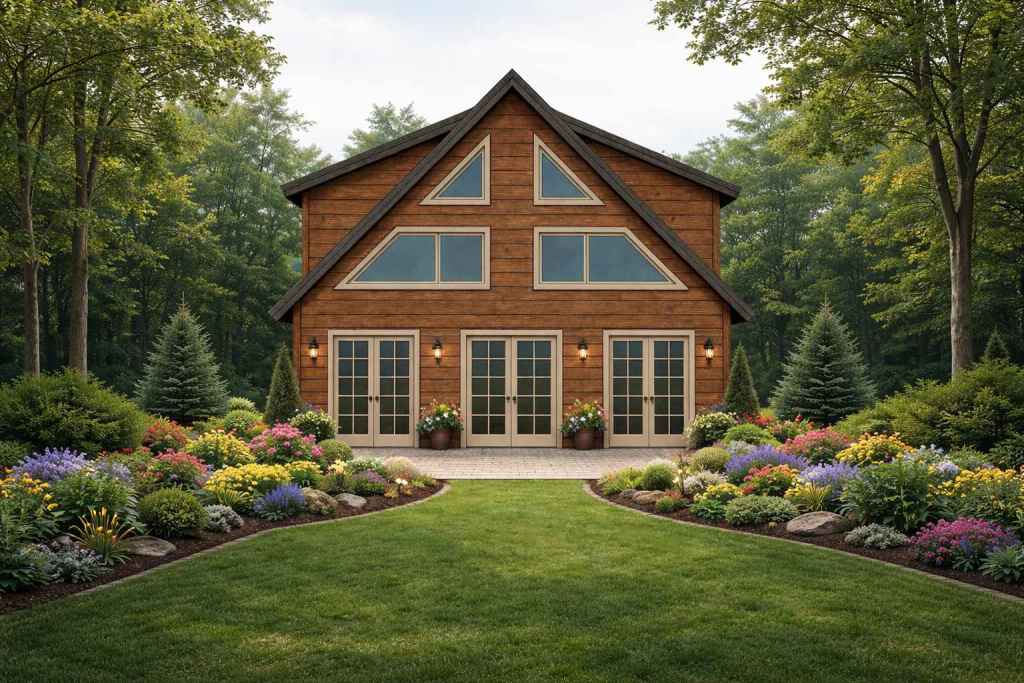

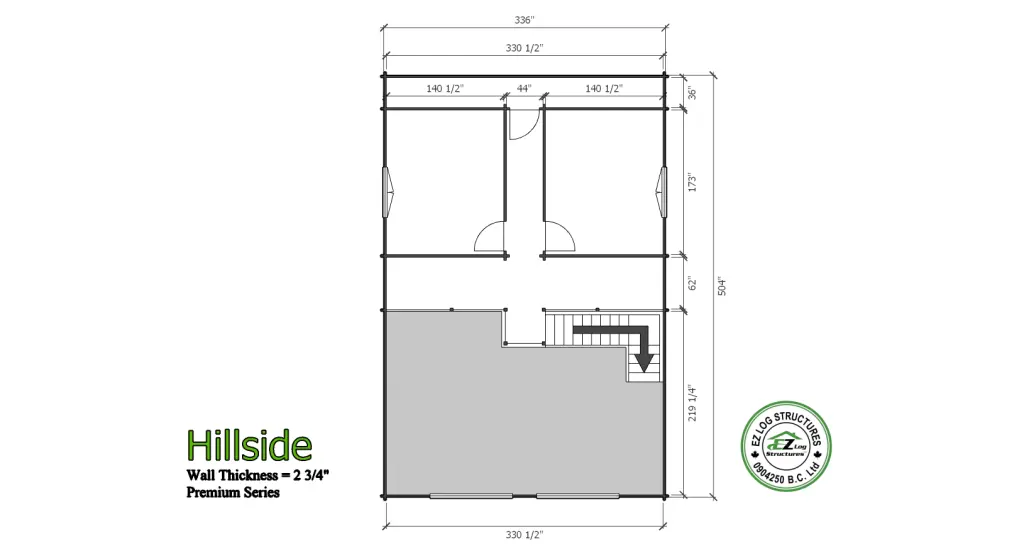

Hillside Lofted is an example of a model using our method of dormers. This 4 bedroom 2 bathroom two story model has vaulted/cathedral ceilings. The stairs lead to an open interior deck area overlooking the main living room. Cann be assembled by 3 people in 10 days or less

Kit includes:

• ready to assemble on a concrete slab or wood foundation
• pre-cut, numbered exterior walls
• pre-cut, numbered interior walls
• pre-cut, numbered gable components
• sidewall height main floor 95″ (2413mm)
• pre-cut 4″ x 8″ (100mm x 200mm) glulam floor beams, spaced 22″ (558mm) or less
• pre-cut loft floor boards 1-1/8″ (28mm)
• stairs, landing, railings built to meet code
• vaulted, cathedral ceilings
• roof pitch 6/12 (30 degree) 4/12 (18 degree)
• pre-cut 4″ x 9.5″ (100mm x 240mm) glulam roof purlins/beams, spaced 22″ (558mm) or less
• pre-cut, numbered 3/4″ (18mm) tongue & groove roof boards
• pre-cut, numbered fascia boards
• 3699 total sq’ of wall area
• 2012 sq’ of exterior wall surface
• 241 lineal’ per row
• 1755 sq’ roof area (163 sq’ meters)
• 7 interior doors 32″x 80″ (812mm x 2040mm), hardware
• 2 single wide wood window 21″ x 21″ (530mm x 530mm)
• 6 double wide wood windows 60″x 39″ (1530mm x 990mm)
• 4 angled windows front wall upper level
• 1 exterior doors 36″x 80″ (990mm x 2040mm) 1/2 glass tempered, multi locking hardware
• 3 exterior double french doors 61″ x 80″ (1550mm x 2040mm) full glass tempered, multi locking hardware
• 2 spare wall logs/spare roof boards
• 4,700 – 8″ log screws to connect each row, gable components, purlins
• 23 rolls 107 sq’ (10 sq meters) roofing underlay (NEW 2026)
• packaged/wrapped for sequence of assembly
• FREE SHIPPING

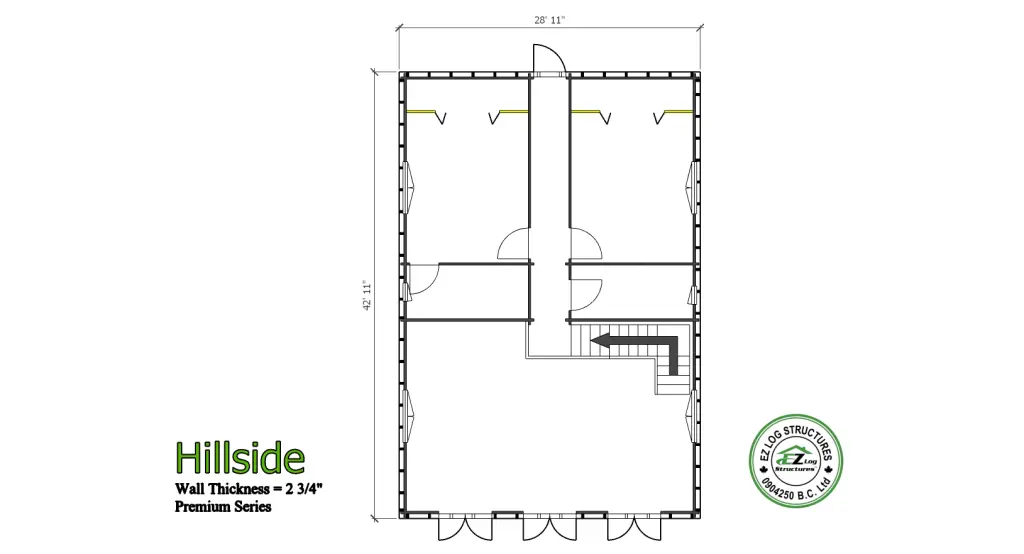

• FOUNDATION SIZE DRAWING
• STAMPED STRUCTURAL ENGINEERING

NOTE: Kits include residential grade, double glazed wood windows & doors. Rough openings can be created to accommodate locally purchased windows & doors
